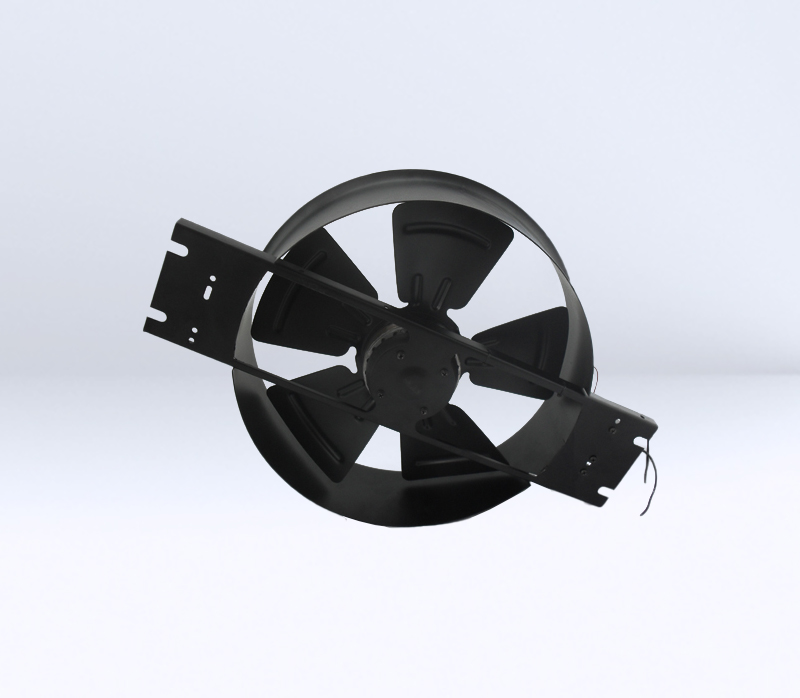

250FZY

Category：

AC AXIAL FAN(Metal impeller)
Browse number：

306
Release time：

2023-11-26 06:02:34

Detailed Description

Motor structure: The motor capacitor drive outer rotor.

Outer enclosure: high quality AI alloy, anti-corrosive and anti damping structure.

Fan blade: steel sheet formed through punching and pressing, blade welded directly on rotor of the motor, its surface treat with anti- corrosive coating by use of Cathodic

electrodeposition.

Insulation resistance: more than 100M 2 between outer enclosure and windings applied with 500VDC.

Dielectric strength: 0.5mA 1500V/AC min.

Bearing structure: ball bearing.

Insulation level: B, F class.

Protection grade: IP 55.

Safe protection: Resistance protection.

Working temperature: -25C ~+85C.

Storage temperature: -30°C ~+90°C.

Service life: 50000h.

Use: used in equipment of ventilation and heat dispersion Places, such as electrical control cabinet, machine tool, EPS, UPS, Medical equipment needs ventilation cooling.
